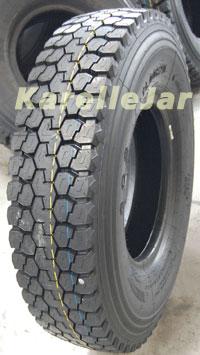

ANNAITE 12R22.5 Radial truck tire
Suitable to driving wheels with good traction and braking performance
| Brand Name: | ANNAITE | ||||||||
| Pattern No. | 302 | ||||||||
| Technical Parameter: | |||||||||
| Tire Size | Load & Speed symbol | Max.load(kg) | Relative | Inflated size | Standard Rim | Tread depth | |||
| pressure (kPa) | of new tire (mm) | ||||||||
| Single | Dual | Single | Dual | Sec.W | Out.D | ||||
| 10.00R20-18 | 149/146 L | 3250 | 3000 | 930 | 930 | 273 | 1053 | 7.5 | 19.5mm |
| 11.00R20-18 | 152/149 L | 3550 | 3250 | 930 | 930 | 287 | 1087 | 8.0 | 17.0mm |
| 12.00R20-18 | 154/151 L | 3750 | 3450 | 830 | 830 | 310 | 1122 | 8.5 | 17.0mm |
| 12R22.5-18 | 152/149 M | 3550 | 3250 | 930 | 930 | 298 | 1082 | 9.00 | 17.0mm |
